Replaces
OEM P/N

Bedford
P/N

Description / Reference / Notes

Repair Kits

Displacement Pump (Fluid Section)

248-213

Repair Kit with Leather & Polyethylene Packings

Piston Rods

240-517

Piston Rod (chrome plated stainless steel)

244-217

- - -

Piston Rod (black plasma coated carbon steel)

248-207

- - -

Piston Rod (Chromex plated stainless steel)

Cylinders & Sleeves

243-347

- - -

Cylinder, fluid outlet housing (outer casing for sleeve)

240-525

Sleeve (stainless steel)

248-210

- - -

Sleeve

Carbide Ball Seats, Check Valves & Check Balls

Upper Ball Seat (Outlet Seat)

240-150

Piston Valve (Stainless Steel Housing)

24U-993

Piston Valve (Plated Steel Housing)

101-947

9-244

Piston Ball (stainless steel)

Lower Ball Seat (Intake Seat)

244-199

Intake Seat Kit (includes seat, ball & o-ring)

102-972

9-839

Intake Ball (stainless steel)

108-526

Teflon O-Ring, under intake seat

Miscellaneous Fluid Section Repair Parts

106-556

0-2333

Teflon O-Ring, bottom of cylinder

107-098

15-1543

Teflon O-Ring, top & bottom of sleeve

118-494

0-2657

O-Ring, intake tube

118-504

52-2666

Wiper, piston valve

108-526

Teflon O-Ring, under intake seat

15C-783

- - -

Intake Valve Housing

15C-998

10-2669

Backup Washer, piston valve

183-169

- - -

Retaining Ring, attach pin

183-171

17-1542

Dust Plug, upper packing nut

183-210

- - -

Pin, attach pin at top of piston rod, 3/8' x 1-1/8'

193-031

- - -

Lock Nut, at top of cylinder

193-032

- - -

Upper Packing Nut

193-127

- - -

Spacer, upper packing nut

196-967

- - -

Ball Guide

Dump Valves, Prime/Spray Valves, Pressure Release Valves, and Components

Standard

Complete Assembly

235-014

Dump Valve Repair Kit, 1/4-turn valve with pin through handle

239-914

Dump Valve Repair Kit with solvent resistant o-ring

Components

111-600

19-2807

Grooved pin (for use with standard handle 187-625)

111-699

- - -

Replaced by 277-364

112-319

O-Ring, fluoroelastomer, solvent resistant (optional)

118-948

6-2683

Backup Split Ring, Teflon

15C-780

- - -

Handle, dump valve, 1-5/8' diameter (optional)

15C-972

Grooved Pin, long (use with drian valve handle 15C-780)

15E-022

58-2317

Seat, carbide

168-110

O-Ring, viton (standard)

187-615

- - -

Replaced by 15E-022

187-625

- - -

Handle, dump valve, standard 1-1/8' diameter

224-807

- - -

Base, dump valve

277-364

20-2865

Gasket, seat (contains (1) each loose-fit & force-fit styles)

= = = = = = = = = = = = = = = = = = = = = = = = =

Heavy Duty

Valve Body Assembly

24A-381

- - -

Replaced by 24B-156

24B-156

Dump Valve, Heavy Duty

Components

15C-972

Grooved Pin

24A-382

- - -

Base, 2-Position

24D-286

- - -

Base, Fast-Flush

24E-233

- - -

Handle Kit Fast-Flush, includes handle, base & grooved pin

24E-234

- - -

Handle Kit 2-Position, includes handle, base & grroved pin

Inlet Filters, Suction Hoses/Tubes, Drain Hoses, and Components

118-494

0-2657

O-Ring, intake tube

189-920

Inlet Filter, 1' NPT(f) thread, 8 mesh, stainless steel, single screen

241-920

- - -

Deflector / Diffuser, drain hose

248-217

- - -

Drain Hose Assembly

248-215

- - -

Intake Tube, 1' NPT thread

Outlet Filter Assembly, Filter Elements & Components

117-285

15-2739

O-Ring, fluid outlet filter

15C-766

- - -

Support / Diffusion Tube, fluid outlet filter

15C-838

- - -

Base / Bowl, outlet filter

244-067

Outlet Filter Element, 60 Mesh, long black plastic frame

244-068

Outlet Filter Element, 100 Mesh, long blue plastic frame

244-069

Outlet Filter Element, 200 mesh, long red plastic frame

244-071

Outlet Filter Element, 30 Mesh, long gray plastic frame

287-285

- - -

Cap, outlet filter (includes o-ring)

Miscellaneous Parts & Accessories

111-457

15-2861

O-Ring, pressure transducer

15D-360

- - -

Pressure Return Hose Assembly

241-279

- - -

Connecting Rod Assembly

243-222

- - -

Pressure Transducer, electronic

Graco Instruction Manuals

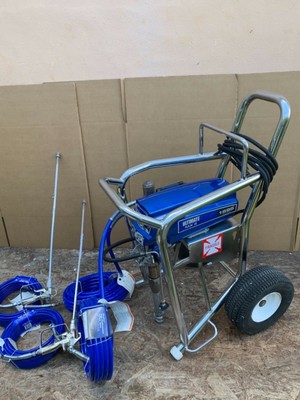

Ultimate Mx II 1095/1595

Displacement Pumps

Ultra Max II / Ultimate Mx II

Click Pictures to Enlarge
= = = = = = = = = = = = = = = =

Before ordering any repair parts or attempting any maintenance, carefully read all instructions and warnings
and verify part numbers required as specified in the OEM manuals that came with your particular unit.
This reference was generated on 10/22/2019. Part numbers on this reference were last modified on 08/11/2016.
